StarEFX™ Acoustic Modular Starlight Panel

StarEFX™ panels bring a captivating starry night effect to any interior while delivering excellent acoustic performance. Designed for simple installation on either ceilings or walls, each lightweight panel is secured using six screws, providing both a visual and functional upgrade to your space.

Integration is seamless thanks to the low-voltage ‘Power Link’ cable system, which enables a clean daisy-chain connection. Up to 24 modular panels can be powered from a single power supply, simplifying wiring and reducing installation complexity.

What makes StarEFX truly unique is that no two panels are alike. Each one features a randomly arranged constellation of shimmering white stars, offering a one-of-a-kind aesthetic and creating a warm, enchanting ambiance in any room.

Important Installation Note:
When installing across a large ceiling area, it is essential to ensure the underlying structure is adequately supported. In some cases, particularly where the drywall may not be securely fixed to ceiling joists or furring channels, we recommend using battens to reinforce the mounting surface. This ensures a safe, stable, and long-lasting installation.

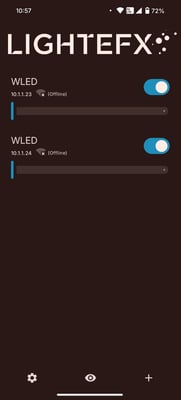

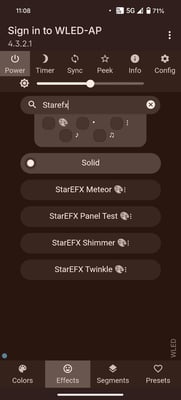

APP-Control Convenience

Your StarEFX Modular Panel is fully operated through our dedicated mobile app, giving you effortless control at your fingertips.

With the app, you can:

• Power panels on/off instantly
• Select from a wide range of colours
• Set timers for automatic operation
• Sync multiple controllers for coordinated effects
• Adjust brightness with smooth dimming
• Toggle the shimmer effect on or off
• Explore 100+ customisable settings to create your perfect ambiance

Details

Applications and Use

Each StarEFX™ panel features its own dedicated light source that illuminates the uniquely arranged fibre optic stars embedded within. The random star pattern ensures every panel offers a distinct visual experience.

Panels can be easily trimmed to fit custom spaces using a sharp utility knife or box cutter, without sacrificing any fibre optics. When resizing is required, a new hole can be carefully made using a 0.0335″ (0.85 mm) pin. Simply poke the new hole and reinsert the fiber into the new opening, maintaining the star effect and preserving both aesthetics and functionality.

Acoustic Performance Where It Matters Most

In addition to its stunning visual display, the StarEFX™ panel enhances the acoustic comfort of any space. Designed with high-density materials and tested to industry standards, it significantly reduces mid-to-high frequency noise, making it ideal for environments where clarity, focus, and a sense of calm are essential. Whether it’s a home theatre, sensory room, classroom, or healthcare space, StarEFX™ helps create a more immersive and acoustically balanced experience.

Home theatres | Media rooms | Music studios | Gamer’s rooms | Restaurants | Cafes

Panel Colours

While the classic black panel continues to be a popular choice, a refined light grey option is also available. This option is ideal for commercial spaces or environments that prefer a lighter ceiling aesthetic. Both the black and light grey panels are standard colours that provide a clean, contemporary look, seamlessly integrating into any setting.

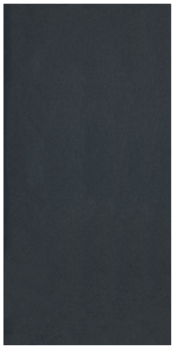

Black

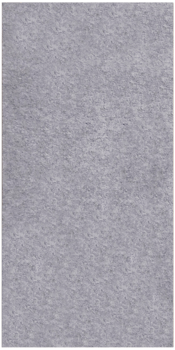

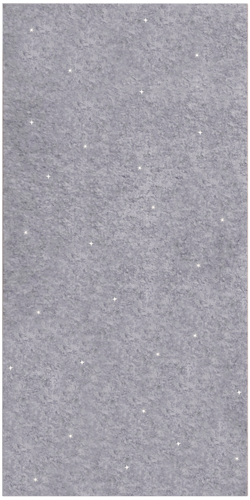

Light Grey

Panel Styles

StarEFX™ panels are available in two edge finishes to suit different visual preferences:

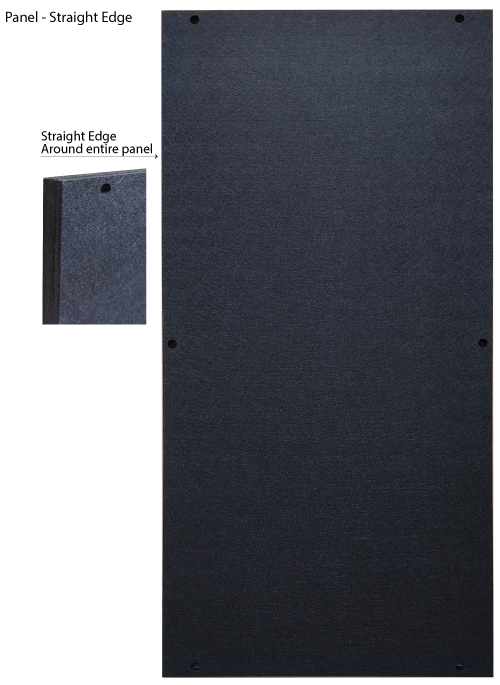

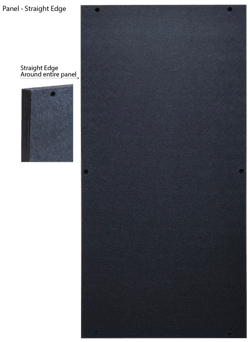

• Straight Edge: Creates a uniform ceiling effect by reducing gaps between joints.
• Bevelled Edge: Creates a subtle tiled pattern across the ceiling, adding dimension and a structured design element.

These options allow flexibility in both functional layout and visual styling to suit residential or commercial interiors.

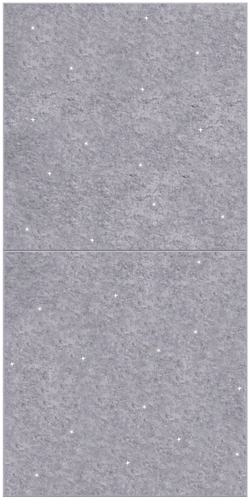

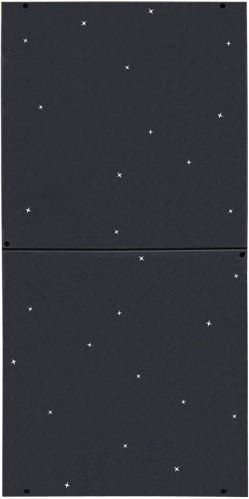

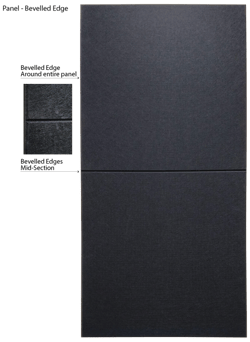

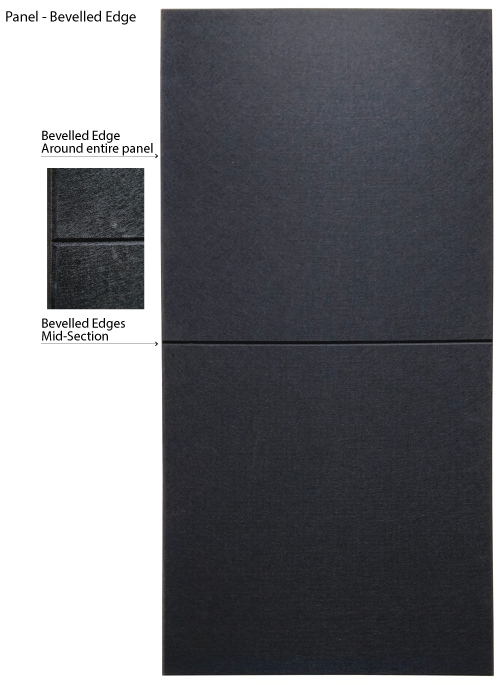

Bevelled Edge

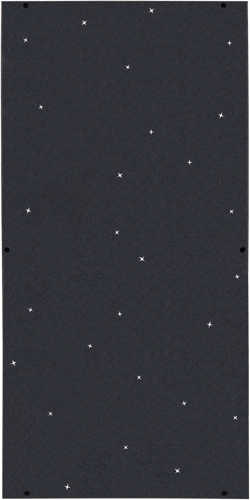

Straight Edge

Click on image to enlarge

Operation

A 240v power outlet is required for the 12V power supply that powers the first panel. For additional panels, the power link cable provided with each panel is used to create a daisy chain connection. Up to 24 panels can be connected from the one power supply.

Starlight Control Options

The StarEFX Modular Panel comes standard with full-colour star lights and app control for maximum flexibility. Using the app, you can change colours, adjust brightness, toggle the shimmer effect, and access over 100 different settings.

For certain commercial installations, where mobile devices are not permitted, panels may be installed with a simple wall switch setup. In this configuration, the star lights will operate in a white shimmer effect only (on/off) without access to app-based colour or pattern control. This provides a quick, compliant, and reliable installation option while maintaining the signature StarEFX sparkle.

Optional Wireless Remote

Where mobile devices are not permitted, a wireless remote can be supplied to expand control functions without the use of the app. The remote includes:

• Power On/Off
• Dimming (up/down)
• S1 – White Light Shimmer
• S2 – Blue Light Shimmer
• S3 – Violet Light Shimmer
• S4 – Yellow Light Shimmer

Power Supply 12v

Wireless Remote

240V / 10Amp Power Outlet

Wall mount switch

Part Numbers and Components

The StarEFX™ part numbering system provides a simple and consistent way to identify each panel configuration within the PULSE model. Each part number is structured to represent the panel’s colour, edge profile, and size, allowing specifiers, installers, and distributors to quickly select the correct model for any application.

The prefix STAREFX-PULSE identifies the product family as part of the StarEFX™ Acoustic Starlight range. The following segments define the panel characteristics:

• Colour Code (BK or GY): indicates the panel finish in either Black or Light Grey
• Edge Code (ST or BV): specifies the edge profile – Straight or Bevelled
• Size Code (10, 20, 30): represents one of three available modular sizes

This format ensures ordering accuracy and simplifies communication between designers, contractors, and suppliers.

Each panel comes with the fibre optic stars pre-loaded into the panel.
*Note: LightEFX does not supply power outlets or wall switches.

Part Numbers & Ordering Information

Panel Model: PULSE
Colour Options: Black, Light Grey
Edge Style Options: Straight (ST) or Bevelled (BV)

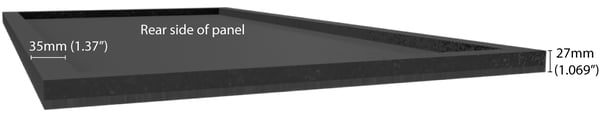

Size Modules: 1190 × 595 × 27 mm | 1190 × 295 × 27 mm | 595 × 595 × 27 mm

Ordering Format (Sample):
STAREFX-[MODEL]-[COLOR]-[EDGE]-[SIZE CODE]
MODEL = PULSE, MATRIX
COLOUR = BK (Black), GY (Light Gray)
EDGE = ST (Straight), BV (Bevelled)
SIZE CODE = 10 (1190×595), 20 (1190×295), 30 (595×595)

Example: STAREFX-PULSE-BK-ST-10 → PULSE, Black, Straight edge, 1190×595

Part No: STAREFX-PULSE BKST-10
Panel colour: Black
Panel style: Straight edge
Panel size: 1190Lx595Wx27H (mm)
Panel weight: 2.0kg
Power Consumption: 1W
Input Voltage: 12V
Light Source: LED
Starlight colour: RGBW
Effect: Shimmer/twinkle + Animations
Star light fibre points Qty: 40
Product group number classification: 1 AS5637.1-2015

Part No: STAREFX-PULSE BKBV-10
Panel colour: Black
Panel style: Bevelled edge
Panel size: 1190Lx595Wx27H (mm)
Panel weight: 2.0kg
Power Consumption: 1W
Input Voltage: 12V
Light Source: LED
Starlight colour: RGBW
Effect: Shimmer/twinkle + Animations
Star light fibre points Qty: 40
Product group number classification: 1 AS5637.1-2015

Part No: STAREFX-PULSE GYST-10
Panel colour: Light Grey
Panel style: Straight edge
Panel size: 1190Lx595Wx27H (mm)
Panel weight: 2.0kg
Power Consumption: 1W
Input Voltage: 12V
Light Source: LED
Starlight colour: RGBW
Effect: Shimmer/twinkle + Animations
Star light fibre points Qty: 40
Product group number classification: 1 AS5637.1-2015

Part No: STAREFX-PULSE GYBV-10
Panel colour: Light Grey
Panel style: Bevelled edge
Panel size: 1190Lx595Wx27H (mm)
Panel weight: 2.0kg
Power Consumption: 1W
Input Voltage: 12V
Light Source: LED
Starlight colour: RGBW
Effect: Shimmer/twinkle + Animations
Star light fibre points Qty: 40
Product group number classification: 1 AS5637.1-2015

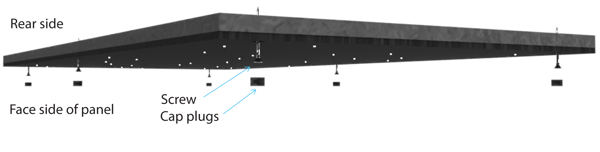

Panel Kit Contents – Supplied with Panel

Part No: FOC-SCREW-6×50
Drywall Screws
Size: 6x50mm
Square (SQ2)
Quantity: 6 pieces
Colour: Chrome plated

Timber Screws
Size: 4x30mm
Phillips head
Quantity: 6 pieces
Colour: Black plated

Part No: PANEL-POL-PLUG
Cavity Plugs
Size: 17mmØ | 0.669″Ø
Quantity: 6 pieces
Colour: Black or Grey

Part No: LINK-CABLE-1.5M
Power Link Cable
Voltage: 12V
Current: 5A
Lead length: 4’11” | 1500mm
Connection: 4 way to 6 way connectors
Quantity: 1 per panel

Power Supply and Connection Cables – Sold Separately

Part No: PS-12VDC-2A-US
Voltage: 12V
Current: 2A
Lead length: 1.5m
Connection: 5.5×2.1mm plug

Part No: PS-12VDC-SPLITTER1-2
Power input: 5.5×2.1mm socket x 1
Connection: 5.5×2.1mm plug x 2

Part No: 5m power extension cable
Voltage: 12V
Current: 5A
Lead length: 5m
Connection: 5.5×2.1mm plug & socket

Mounting Framework & Trim Detailing – Sold Separately

Part No: MDF-2400X150X9
Size: 8’x6″x3/8″ | 2400Lx150Wx9H (mm)
Colour: Brown

Part No: Border aluminium
Size: 94.5″L 1.77″×1.10″×1.29″ H | 2400L 45x28x32.8H (mm)
Colour: Black

LED Strip – Sold Separately

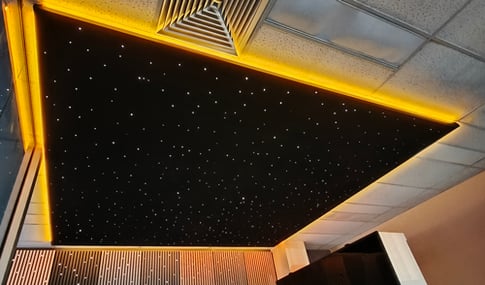

An optional LED strip can be installed along the perimeter of the C-channels, creating a soft, glowing edge effect that adds depth and ambiance to the ceiling installation. The LED strip adheres directly to the C-channel using its adhesive backing.

The LED strip is powered independently by a 240V to 24V DC, 250W power supply. This setup allows for flexible control and ensures that the lighting system remains isolated from the panel’s power circuitry.

During installation, make sure that the LED strip is evenly aligned and centred within the trim channel. This ensures a uniform glow and maintains the clean, professional finish of the StarEFX™ ceiling.

This aesthetic enhancement does not affect the installation of the panel.

LED Strip and Power Supply – Sold Separately

Part No: LED-RGBIC-IP30-24
Input voltage: 24v
Power rating: 8.23W p/ft | 27W p/m
Size: 0.47″ | 12mm
LED quantity: 256 p/ft | 840 p/m
Cut intervals: 4″ | 100mm
IP rating: IP30
Quantity roll: 16.40ft | 5m
Colour: RGBIC

Part No: PS-24VDC-250-AU
Input voltage: 240v
Output voltage: 24v
Watt: 250
Current: 10.42A
IP rating: 67

Part No: LED-RGBIC-CTLR-ESP32
Input voltage: 5v – 24v
Output current per channel: 10A
Total output: 15A
Addressable ICs: 800
Operation: App control
IP rating: 20

LED Strip Connections – Sold Separately

Part No: LED-RGBIC-CON-3W-100
Input voltage: 24v
Power rating: 5A
Size: 0.47″ | 12mm
Connector: 3 pin
Wire size: 22 AWG
Wire length: 4″ | 100mm
IP rating: IP20

Part No: LED-RGBIC-CON-3W-STRP
Input voltage: 24v
Power rating: 5A
Size: 0.47″ | 12mm
Connector: 3 pin
IP rating: IP20

Tools – Sold Separately

Part No: FOC-POL-DRILL 16.2
Shank size: 12mm
Hole size: 16.2mm
Material: Stainless Steel

Part No: FOC-POL-PIN 0.80
Size: 50mm
Hole size: 0.80mm
Material: Nickel plated steel

Part No: Utility knife
Blade width: 18mm

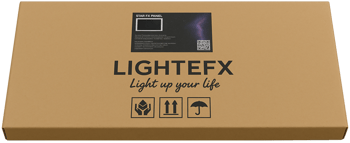

Packaging

Single Panel
Quantity per box: 1 Panel
Dimensions: 48.4″L x 24.8″W x 2.4″H | 1230L x 630W x 60H (mm)
Weight: 2.3kg
Volume: 0.047m³

Bulk Packaging
Quantity per box: 10 panels
Dimensions: 1265L x 685W x 300H (mm)
Weight: 24kg
Volume: 0.26m³

Installation

Install Requirements

• Philips screwdriver
• Timber screws
• Quad
• Drywall screws
• Ladder
• Measuring tape
• Pencil
• Gloves
• Safety glasses
• Respirator mask
• 240v, 10Amp Power Outlet above the ceiling (installed by a licensed electrician)
• Hole cut out in plaster for the power supply – 65mm
• Wall switch (installed by a licensed electrician)

Preparation

1. Determine the panel’s orientation to be mounted onto the ceiling.
2. Determine the offset distance from each wall so the StarEFX ceiling is centred.
3. Mark out the area on the ceiling where the panel will be mounted.
4. Mark and cut out the area where the power supply will be inserted through the ceiling.
5. Install power outlet and wall switch.
6. Plug the power supply into the power outlet. Leave approx. 1 metre of the 12v power cable suspended from the ceiling allowing accessibility.
7. Install the StarEFX panel.

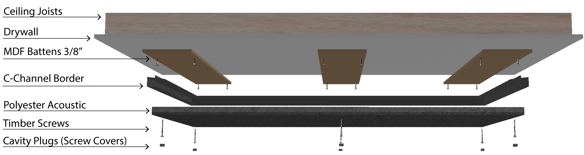

Installation – Plaster Ceilings

Installation Disclaimer: Direct Fix to Plaster Ceilings
Fixing StarEFX™ panels directly to plasterboard/gyprock ceilings can cause the ceiling lining to separate from joists or furring channels due to inadequate pull-out strength and load distribution. LightEFX recommends installing over battens or a suitable structural substrate so panels are fixed securely into framing.

Notes:

• Panels are low-voltage and safe to handle during installation, but any electrical work should follow local safety regulations.
• Panels should be aligned precisely and mounted flush against battens or channels for optimal acoustic and visual effect.
• Ensure C-channels are securely mounted before panel installation.

Click images to enlarge

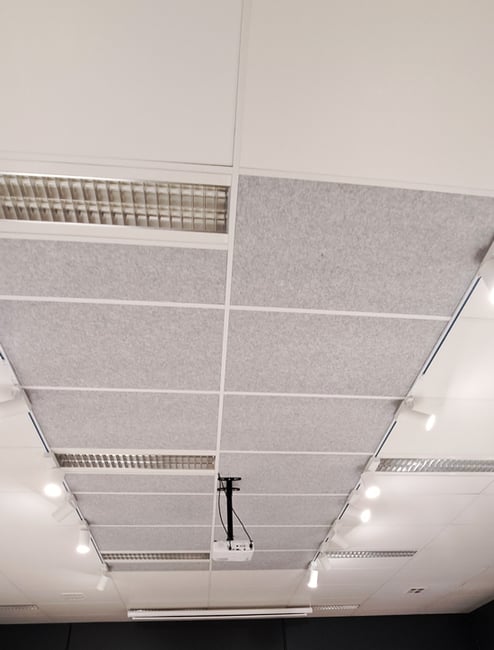

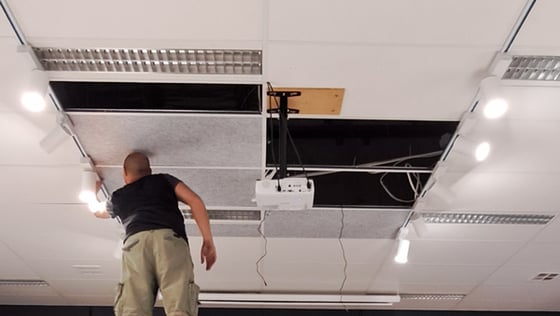

Installation – Grid System

Installation Notes:

• Ensure all connections are secure and cables are not pinched or strained within the grid.
• Power supplies and controllers should remain accessible above the ceiling for future maintenance.
• Panels are low-voltage and safe to handle during installation, but any electrical work should follow local safety regulations.

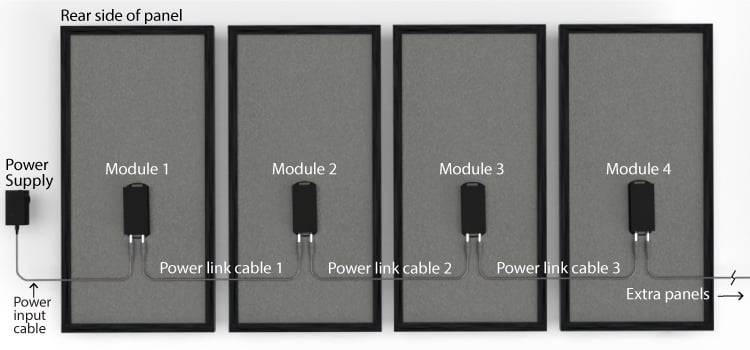

Power Link Connection (Daisy Chain)

Connect up to 24 modules from a single power supply

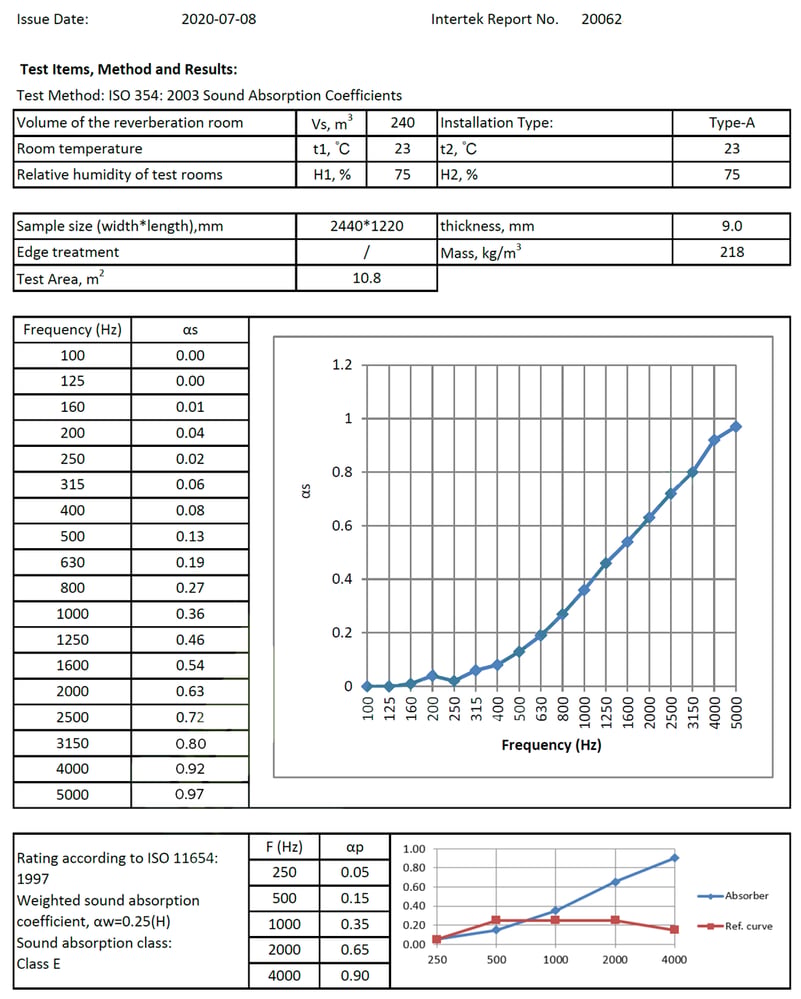

Acoustic Specifications
