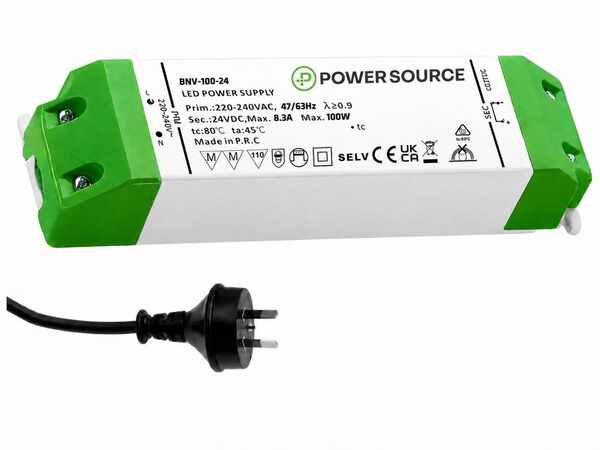

24V Constant Voltage LED Drivers — Australian Flex and Plug
Purpose-built for the Australian market, these 24V constant voltage LED drivers come factory-fitted with an Australian flex and plug for simple plug-and-play installation. Available in seven power ratings from 40W to 320W, they power LED strip lighting, EdgeLine architectural profiles, and StarEFX panels.
Model Comparison
| SKU | Output | Efficiency | Dimensions (L×W×H) | Weight |
|---|---|---|---|---|
| PS-24V-40W-AU | 24V 1.67A 40W | 85% | 150 × 40 × 26 mm | 0.23 kg |
| PS-24V-75W-AU | 24V 3.125A 75W | 88% | 180 × 46 × 31 mm | 0.35 kg |
| PS-24V-100W-AU | 24V 4.17A 100W | 90% | 190 × 52 × 30 mm | 0.42 kg |
| PS-24V-150W-AU | 24V 6.25A 150W | 92% | 179.4 × 62.5 × 30.6 mm | 0.7 kg |
| PS-24V-200W-AU | 24V 8.33A 200W | 93% | 210 × 68 × 32 mm | 0.78 kg |
| PS-24V-250W-AU | 24V 10.4A 250W | 93.5% | 215 × 68 × 35 mm | 0.85 kg |
| PS-24V-320W-AU | 24V 13.3A 320W | 94.5% | 215 × 77.5 × 35 mm | 1.3 kg |
Common Specifications
- Input: 220–240V AC, 47–63 Hz
- Output: 24V DC constant voltage, SELV
- Classification: Class II double-insulated
- IP Rating: IP20 (indoor use)
- Connection: Factory-fitted Australian flex and plug
- Safety: AS/NZS 61347, RCM approved
- Warranty: 3 years
Built-In Protection
- Short circuit protection with auto-recovery
- Overload protection (constant current limiting)
- Over-voltage protection
- Over-temperature protection with auto-recovery
Sizing Guide
Choose based on the total wattage of your LED load, allowing 15–20% headroom. For example, a 4-metre run of 14.4 W/m LED strip draws 57.6W — the 75W driver provides adequate headroom, while the 100W driver offers room for future expansion.
